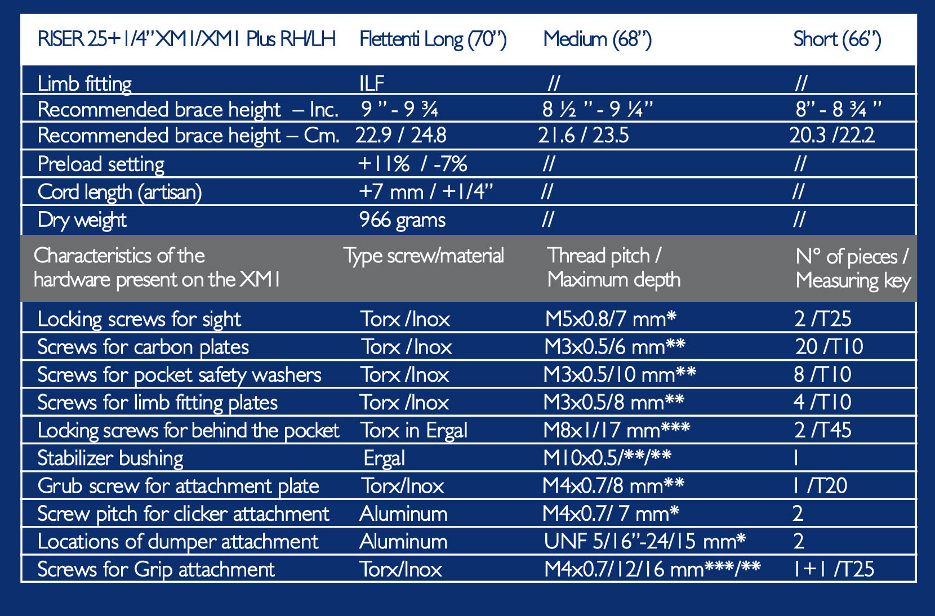

Note:
Some of the data for recommended brace height and tiller settings are subject to partial variability depending on the type of limbs used and the characteristic measures of each individual athlete. It is therefore recommended that a personal check should be carried out on the ideal arc setting according to the specific measures and assembled equipment of the riser.
* Maximum limit of usable internal depth.
** Screw lengths.
*** DIY type, not unified.
**/** Minimum length allowed of the thread pin extension/stabilizer from a minimum of 12 mm to a maximum of 20 mm.
***/** Respectively according to the RH/LH versions length 12 mm of window side, 16 mm button side.
